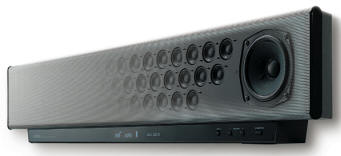

The new Yamaha YSP1 42 Speaker Digital Sound Projector
These Walls Can Talk!!
The digital sound projector technology used in this compact system uses
the reflective properties of your walls to create true multi-channel
surround sound in virtually any small, medium, or large-sized room.
Additional Views
True Multi-channel Surround Sound from a Single Component
This single component houses 42 individual speakers, each driven by a
separate digital amplifier, to create a true multi-channel surround
environment.
Yamaha Digital Sound Projector
The digital sound projector technology used in this compact system
controls the direction of sound from its speakers by focusing it into
beams. When sound reflects off the walls in the room, it sounds like
there are actually speakers behind and to the side of the listener.
These multi-channel sound beams are created using sophisticated
algorithms that take advantage of controlled sound dispersions to sculpt
the multi-channel experience.
Streamlined & Elegant
The slim and stylish YSP1 is ideal for use with all flat panel displays.
It works in a variety of room configurations, including corner
placement. The elegant, self-contained design makes additional speakers
and wires entirely unnecessary. YSP1 will appeal to anyone with a desire
for true multi-channel sound from a neat, uncluttered, unobtrusive home
theatre system.
Easy to Install & Simple to Use
YSP1 easily connects to existing components with its two optical
(digital), one coaxial (digital), and two stereo (analog) inputs. The
preset remote can also control TVs and DVD players. For advanced
customization, an RS-232C interface has been incorporated into the
design. Although a subwoofer is not required, a subwoofer output is
provided.
It's No Magic Trick
Long before we became known for audio equipment, Yamaha was a music
company renowned for making some of the most impressive pianos in the
world. We have become the world’s largest producer of musical
instruments and are also a leader and innovator in the field of
electronic instruments. In short we are a company driven by a love of
natural sound, and a mandate to improve it.
Which is why we do not take the design and production of home audio
components lightly and the YSP1 is no exception. This single component
houses 42 transducers, each driven by a separate digital amplifier, to
create a true multi-channel surround sound environment minus all the
extra speakers.
These Walls Can Talk
The digital sound projector technology used in this compact system uses
the reflective properties of your walls to create true multi-channel
surround sound in virtually any small, medium, or large-sized room.
A Revolution in Multi-channel Home Cinema?
42 speakers certainly sounds impressive, but it does beg the question of
“can’t anyone put a bunch of speakers in a box and call it a
revolution?”
The Simple Answer
No. While it is true that anyone could line up multiple speakers in an
array to create impressive sound, when it comes to multi-channel
surround sound, it’s not just a numbers game.
It's All About Timing
Each of the 42 speakers housed in the sleek and elegant YSP1 is
individually driven by it’s own digital amplifier, and a patented
Digital Sound Projection technology specifically designed to control the
direction and delay of the sound. By focusing the sound into ”beams” and
controlling the speaker delay times, the listener perceives the sounds
to be coming from additional speakers placed throughout the room.
The time delay, volume level, and phase of each speaker driver is
controlled by the Digital Sound Projection (DSP) circuit. The DSP
circuit, unique to Yamaha, allows the YSP1 to precisely aim the sound
beams for an optimum effect. These direct and reflected sound waves
produce true multi-channel surround sound in virtually any room.
|
Shown wall mounted. Television not included.
General Features
LCD Display.
Remote Control: Included
Tweeter: 1.625 (40)
Wall Mountable.
Woofer: 4.375 (2)
Inputs / Outputs
Coaxial: Rear Input (1)
Optical: Rear Input (2)
RS232: Rear Input (1)
Subwoofer Out: Rear Output (1)
Analog Audio: Rear Input (2)
Dimensions
Weight (Pounds): 28.7
Depth (Inches): 4.63
Height (Inches): 7.75
Width (Inches): 40.56
YSP1 Specifications Back To Top
Easy Set Up Setting:
Room Type - Shape of the room
Speaker Position - Where is the YSP placed
Room Size - How big is the room
Adjustable Surround Mode and Manual Setup
Dolby Digital & DTS Surround Sound Compatibility Dolby Pro Logic II -
(Movie, Music and Game) DTS Neo:6 (Cinema and Music)
Three User Memory Positions
Night Listening Mode
Room Equalizer
Parameter Settings
Horizontal/Vertical Angle Adjustment
Preset Remote Control
The YSP-1 rear panel offers 2 optical and 1 coaxial digital inputs, 2
analog inputs, subwoofer output, and RS-232C interface for custom
applications.
Speakers Section
1-5/8 inches x 40 drivers
4-3/8 inches x 2 woofers
Digital Amplifier
120 W total power: 2 W x 40 + 20 W x 2
Dimensions (W x H x D) 40-9/16 x 7-3/4 x 4-5/8 inches
WSPM-K1 : Optional Wall Mounting Bracket |
